Features
- Battery-less operation mode
- Lithium battery BMS communication
- Compatible with lead-acid, lithium and custom batteries
- Configurable operating modes
- LCD + LED display with optional app monitoring
Hybrid Solar Inverters

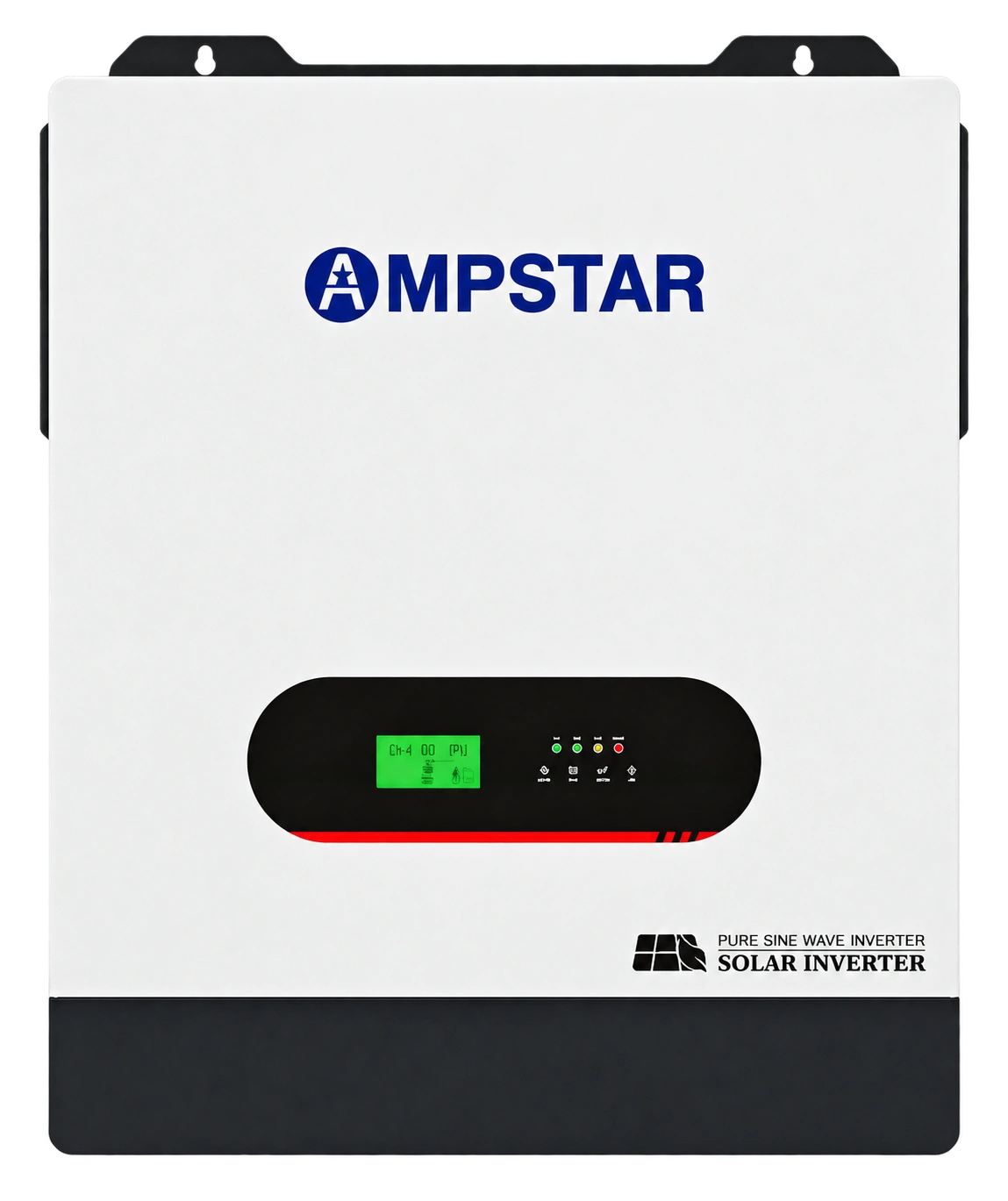

AS-15.3KW-ECO | Hybrid Solar Inverter
A 15.3kW hybrid solar inverter for 48V battery systems with two MPPT input channels.
Inquire about this product
Specifications
ModelAS-15.3KW-ECO
Compatible BatteriesLead-acid / lithium / custom batteries
AC Output WaveformPure sine wave
AC Frequency50Hz / 60Hz
Maximum Conversion Efficiency94% peak
MPPT Efficiency≥99.9%
Transfer Time10ms typical
DisplayLCD + LED
CommunicationRS485; optional WiFi / GPRS mobile monitoring
IP RatingIP20
InstallationWall-mounted
Operating Temperature-10 to 50°C
Storage Temperature-15 to 60°C
Noise≤55dB
Rated Output Power15.3kW
Battery Voltage48V
Battery Voltage Range42–60V default
Maximum PV Input Power2 × 8000W
MPPT Voltage Range80–450V
Maximum PV Open-Circuit Voltage500V
Maximum PV Input Current2 × 27A
MPPT Channels2
Maximum PV / Total Charging Current220A
Maximum AC Charging Current160A
AC Output Voltage220V / 230V / 240V
Dimensions (L × W × H)630 × 540 × 130mm
Net Weight22kg
Applications
- Residential solar power
- Battery backup systems
- Off-grid, hybrid and on-grid operation
