Features
- Smart BMS for charge and discharge protection
- LCD display for operating status
- CAN, RS485 and RS232 communication
- Mobile caster wheels for floor-standing installation
Residential Energy Storage

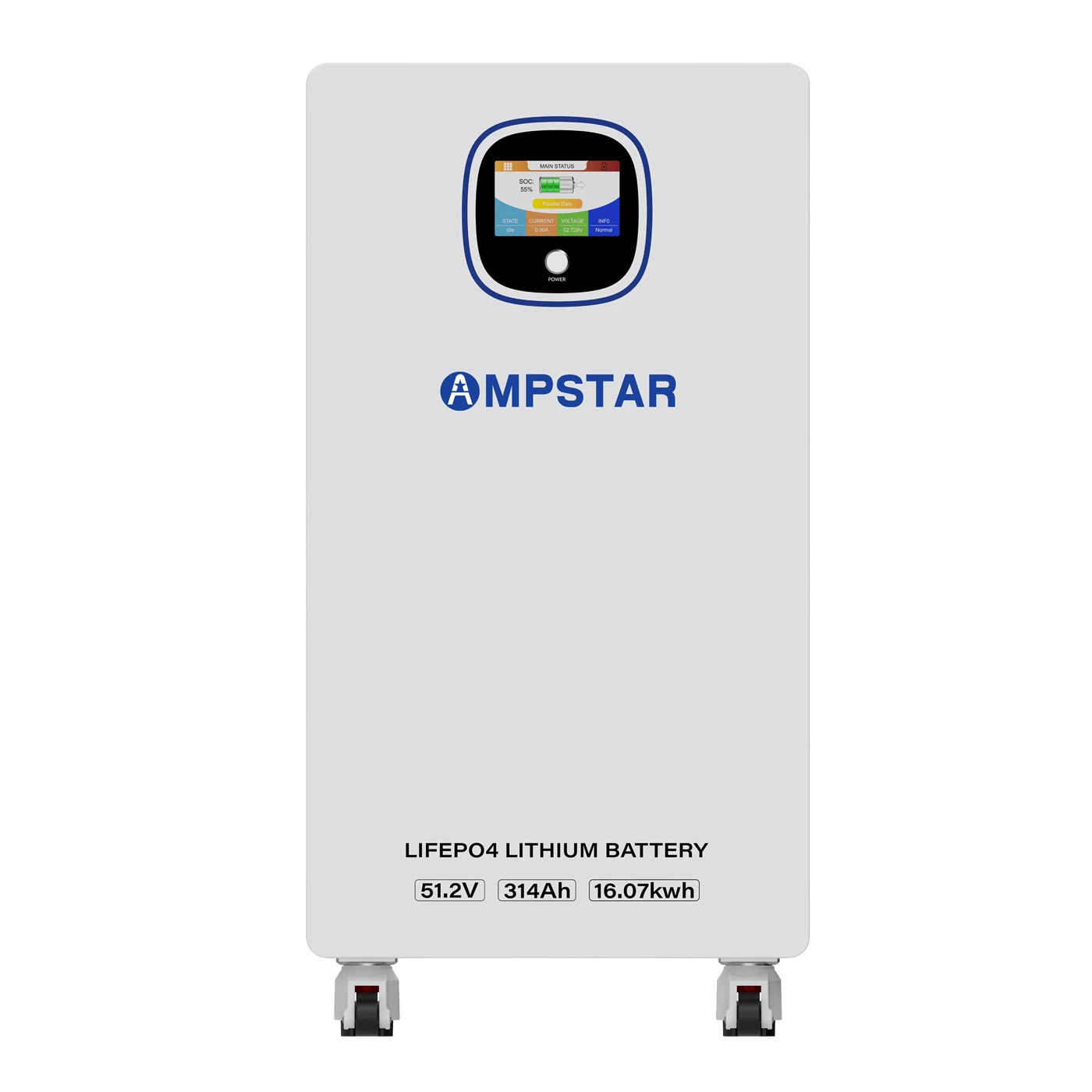

AS-512314-ECO | LiFePO4 Battery
A 51.2V, 314Ah floor-standing LiFePO4 battery with 16.07kWh capacity for home energy storage.
Inquire about this product
Specifications
ModelAS-512314-ECO
Nominal Voltage51.2V
Battery ChemistryLiFePO4
DisplayLCD
CommunicationCAN / RS485 / RS232
IP RatingIP20
Operating TemperatureCharge: 0 to 45°C; discharge: -20 to 55°C
Humidity≤95% RH
Maximum Altitude≤2000m
Warranty (datasheet)5 years
Nominal Capacity314Ah
Battery Energy16.07kWh
Working Voltage (datasheet)56.16V
Maximum Charge Current150A
Maximum Discharge Current200A
Charge Power7680W
Discharge Power10240W
Short Circuit CurrentApproximately 540A
Dimensions (W × D × H)450 × 230 × 866mm
Weight119kg
Cycle Life8000 cycles at 90% DOD / 25°C / 0.5C
Parallel ExpansionUp to 63 batteries
Storage Temperature-10 to 45°C within 1 month; 0 to 35°C within 1 year
Applications
- Residential solar storage
- Home backup power
