Features
- Smart BMS for charge and discharge protection
- LCD display for operating status
- CAN, RS485 and RS232 communication
- Floor-standing or wall-mounted installation
Residential Energy Storage

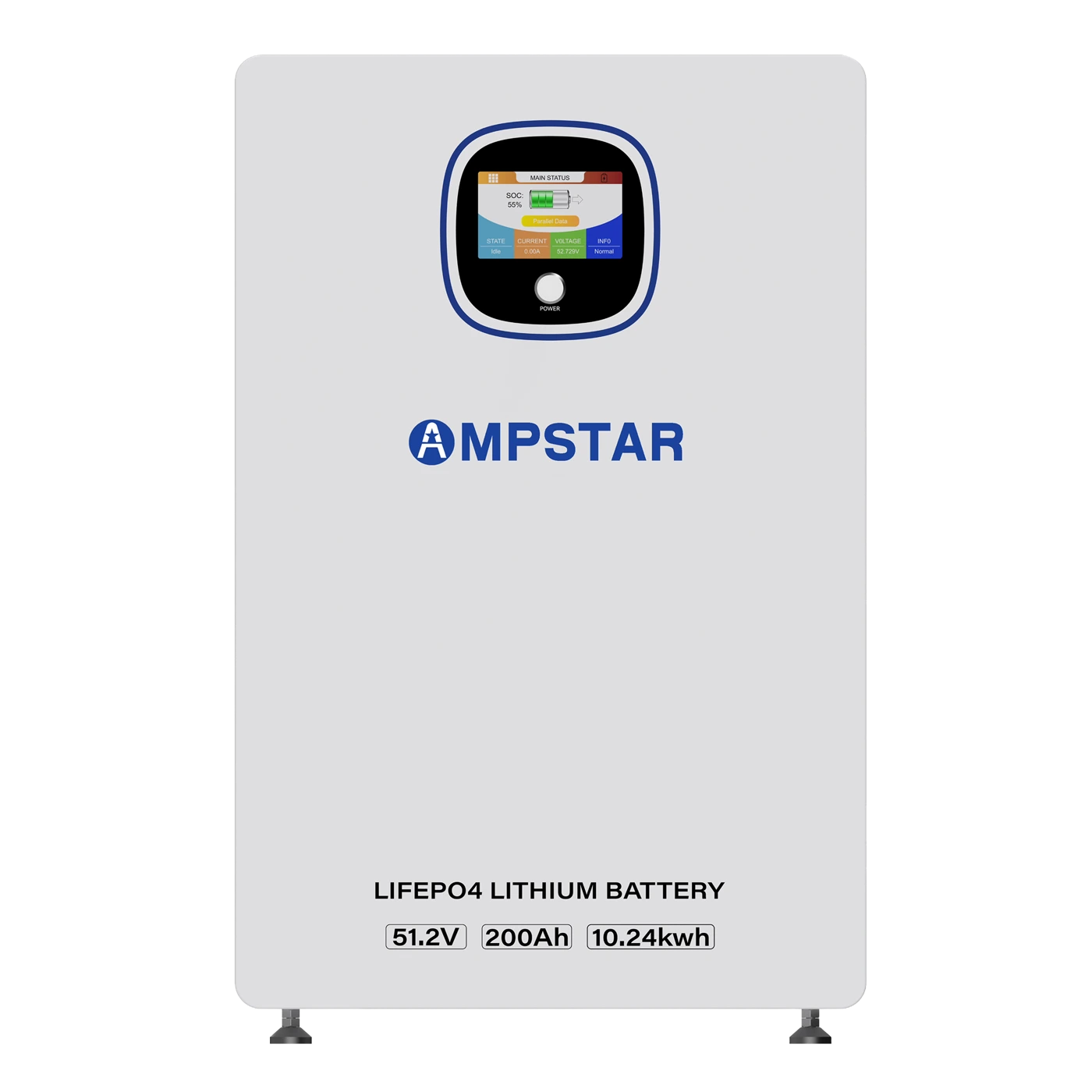

AS-512200-ECO | LiFePO4 Battery
A 51.2V, 200Ah LiFePO4 battery with 10.24kWh capacity for residential solar storage and backup power.
Inquire about this product
Specifications
ModelAS-512200-ECO
Nominal Voltage51.2V
Battery ChemistryLiFePO4
DisplayLCD
CommunicationCAN / RS485 / RS232
IP RatingIP20
Operating TemperatureCharge: 0 to 45°C; discharge: -20 to 55°C
Humidity≤95% RH
Maximum Altitude≤2000m
Warranty (datasheet)5 years
Nominal Capacity200Ah
Battery Energy10.24kWh
Working Voltage45.6–56.16V
Maximum Charge Current100A
Maximum Discharge Current170A
Maximum Charge Power5120W
Maximum Discharge Power8704W
Short Circuit CurrentApproximately 300A
Dimensions (W × D × H)450 × 230 × 680mm
Weight83.5kg
Cycle Life6000 cycles at 90% DOD / 25°C / 0.5C
Parallel ExpansionUp to 63 batteries
Storage Temperature≤25°C: 12 months; ≤35°C: 6 months; ≤45°C: 3 months
Applications
- Residential solar storage
- Home backup power
