Features
- 500W pure sine wave output
- Fast PV / AC charging
- Bidirectional inverter
- Color screen display
All-in-One Energy Storage

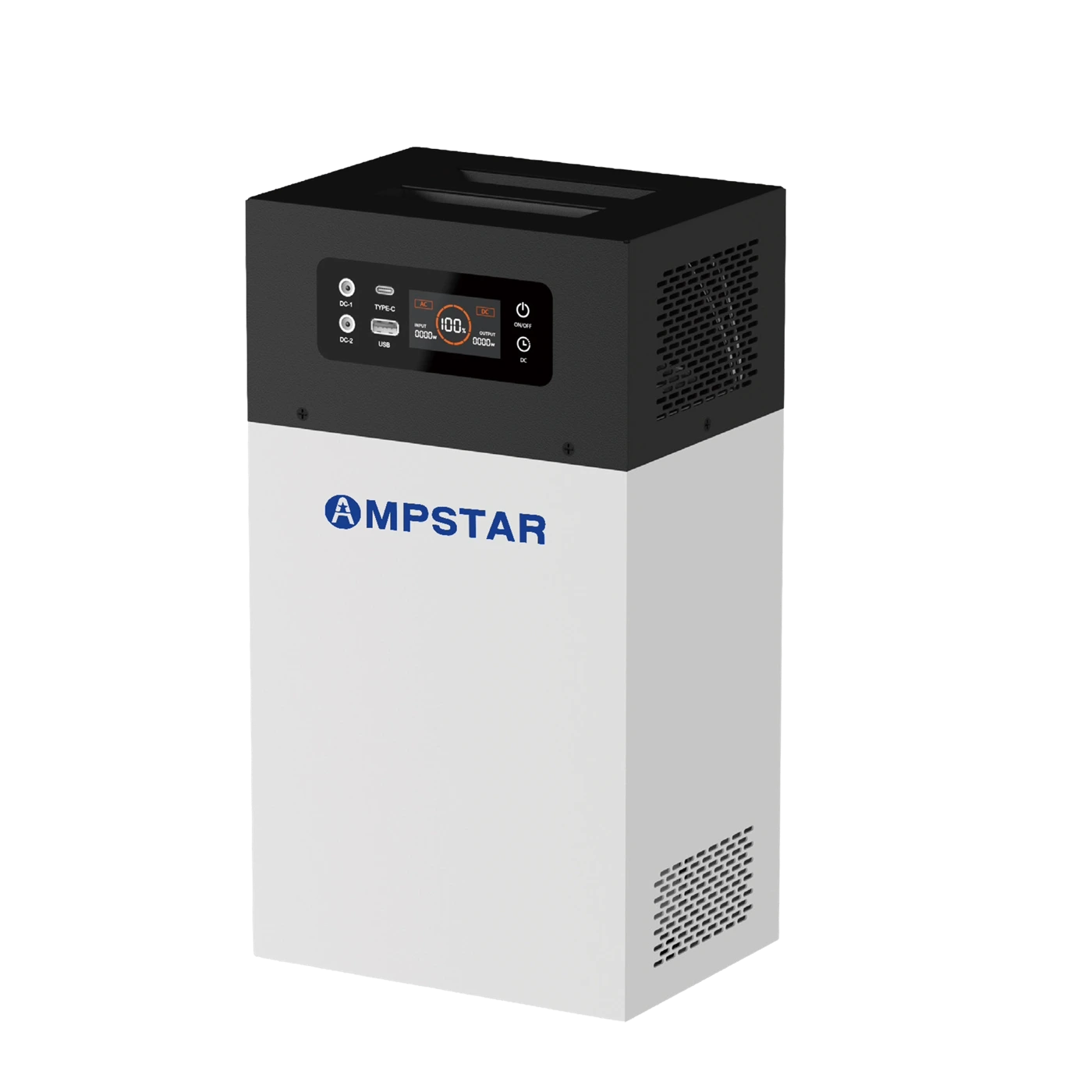

AS-500W/1KWH-ESS | All-in-One Energy Storage System
A portable all-in-one energy storage system with 500W pure sine wave output, 1004.8Wh battery capacity and PV / AC charging.
Inquire about this product
Specifications
ModelAS-500W/1KWH-ESS
Rated Output Power500W
Battery Capacity1004.8Wh
Battery ChemistryLiFePO4
Battery Rated Voltage3.2V
Cell Capacity314Ah
AC Input230V, single-phase L/N
AC Input Voltage Range90–280V ±5V
AC Output230V ±5V, 50Hz ±0.5%
AC Charging Power500W max
PV Maximum Power (MPPT)300W
PV Voltage Range10–55V
PV Maximum Current10A
Maximum Battery Charging Current140A
UPS Switching Time≤20ms
Maximum Inverter Efficiency88%
AC Outlets2 × Schuko sockets
ProtectionUnder/overvoltage, short circuit, overtemperature
Operating Temperature-10 to 50°C
Storage Temperature-15 to 60°C
Dimensions210 × 156 × 376mm
Net Weight11kg
Applications
- Home backup power
- Outdoor activities
- Emergency energy needs
